World Precision Instruments
Microinjector with cell penetrator, MICRO-ePUMP
Code MICRO-ePUMPWPI

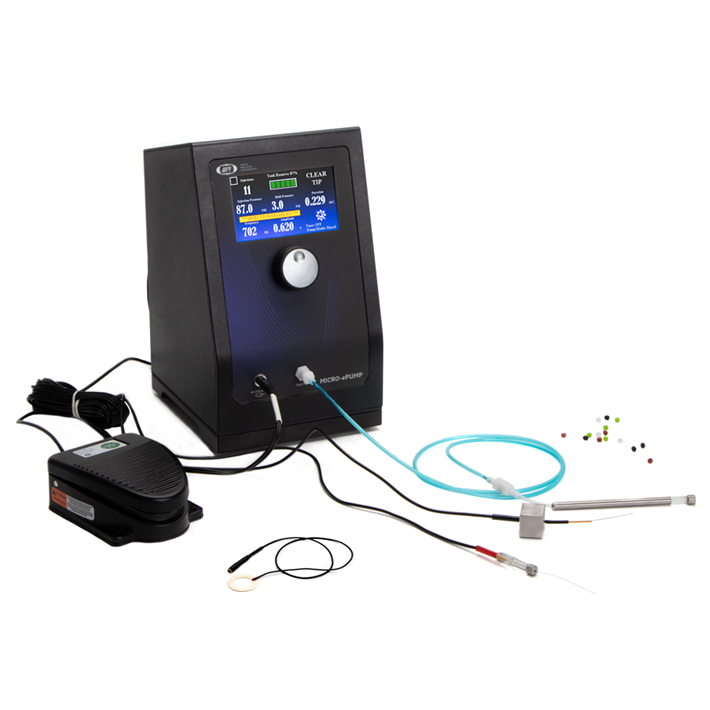

WPI’s MICRO-ePORE™ Pinpoint Cell Penetrator technology is embedded inside the MICRO-ePUMP. When the researcher enables the MICRO-ePORE™, it delivers a highly localized voltage signal to a targeted injection site to facilitate penetration with minimal trauma. The researcher determines the amplitude and frequency of the signal that best suits the application. The signal originates in the control box, and it is transmitted through the electrode interface cable to the microelectrode holder. A silver wire is used to transmit the signal into the electrically conductive substance being injected. A reference electrode is used to place the media at 0.0 V potential with reference to the generated voltage.
Zjistit více
Ukázat další produkty
Výhody
- Regulated compensation and injection pressure
- Pressure output: 0.3–87 PSI
- Internal pressure source
- Onboard MICRO-ePORE™
- Pinpoint Cell Penetrator for targeted microinjection and increased viability of injected embryos
- Audio continuity tone indicating active probe
- Injection counter to indicate total number of injections
- User-adjustable frequency and voltage through touch screen
- Foot switch to activate voltage for MICRO-ePORE™ and injection
- Low volume tubing assembly
Benefits of MICRO-ePORE™ Pinpoint Cell Penetrator
- Increased viability of injected embryos
- Intuitive user-interface for injector and MICRO-ePORE™
- Small footprint takes up very little bench space

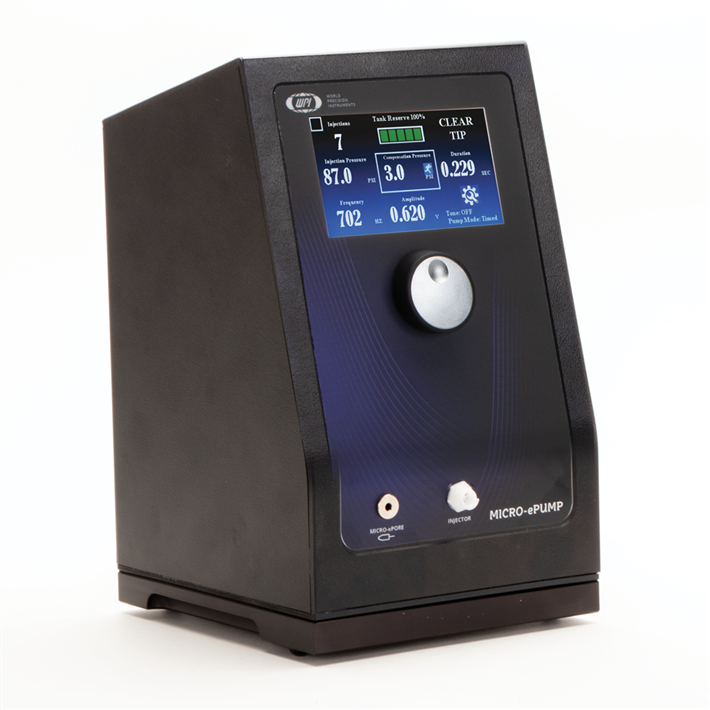

- Easy to navigate with touch screen and control knob
- Inject into a single cell in picoliter volumes
Applications
- Microinjection of diverse compounds and biomolecules – DNA, RNA, proteins
- Pre- and post-implantation in embryos of various species – mice, rats, monkeys, bovine, pigs, zebrafish, etc.
